Αναλυτής συγκέντρωσης αερίου όζοντος τοποθετημένος στο ράφι

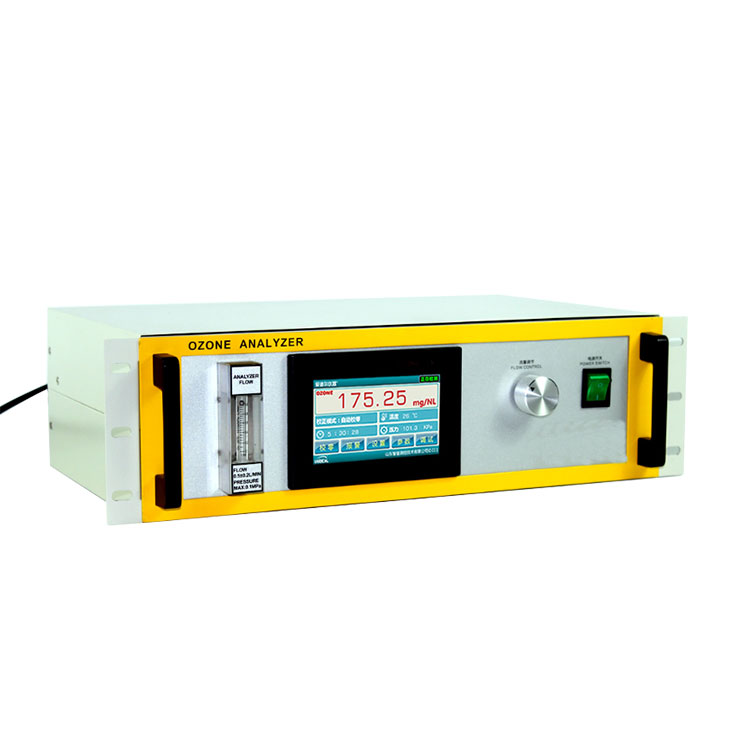

The UVOZ-3000 Rack-Mounted Ozone Gas Concentration Analyzer uses an advanced dual-path ultraviolet light source system and is equipped with an intelligent lamp management system. After the machine is turned on, the ultraviolet lamp can quickly reach the measurement state. It adopts foreign separated light pool technology. The equipment has the characteristics of no leakage, high pressure resistance, resistance to large flow sampling gas impact, easy cleaning, convenient maintenance, simple operation, and low cost of use. It is mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in running pipelines, containers and other environments. It is widely used in pharmaceutical, chemical, municipal, sewage treatment and other industries to measure the outlet concentration of ozone generators and the output of ozone generators.

The ozone analyzer has a touch screen operation interface, which displays the concentration of ozone gas in real time, has pressure and temperature compensation and display, and can set automatic zeroing time and manual zeroing mode. The high concentration (g/Nm3) range has a flow input function, which can display the output of the ozone generator in real time. With two sets of relay signal outputs, users can freely choose the high alarm point and low alarm point signal output connection. The core components use a long-life ultraviolet light source system and a high-transmittance quartz plate to ensure the stability of the zero point and prevent zero drift from affecting the accuracy of the detection concentration. The pressure-resistant and impact-resistant independent light pool structure designed according to foreign light pool technology keeps the gas flow, pressure, and flow rate unchanged during the zeroing operation to prevent the impact of airflow from affecting the zeroing. The zeroing operation can be completed without shutting down the ozone intake, ensuring that the equipment can run continuously 24 hours a day.

Application areas: ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, swimming pool disinfection industry, flavor synthesis industry and other industries using ozone generators.

UVOZ-3000 ozone gas analyzer, with optional range and working mode.

Product features:

Test method: dual-path ultraviolet absorption method, long-life light source system, high measurement accuracy.

Measurement principle: According to the Lambert-Beer law, accurate measurement is made through the principle of photometric absorption.

Light source system: foreign long-life ultraviolet light source system (wavelength 253.7nm), free warranty for 3 years.

Usage: indoor installation and use, equipped with power supply and signal terminals.

Light pool system: separate light pool technology, no leakage, high pressure resistance, and resistance to large flow sampling gas impact.

Intelligent compensation: built-in temperature and pressure compensation and display, with automatic light source compensation function.

Operation mode: users can choose manual zeroing and automatic zeroing according to the operating status, and can set the automatic zeroing time.

Display unit: g/Nm3, mg/NL, %WT, ppm, mg/Nm3 optional.

Data display: high-definition color touch screen, high concentration range setting of inlet gas mass flow, real-time display of output.

Output function: 4-20mA, RS485 communication, two sets of alarm point output, electronic flow meter input, etc.

Standard configuration: anti-corrosion flow meter, ozone exhaust destroyer, air intake filter.

Product structure composition

Τεχνικές παραμέτρους
